MIDDEL LETHABA DAM – MISCELLANIES ITEMS – ORDER NUM: PO 0000075
Technical Report: Fabrication and Installation of Miscellanies Items
1. Introduction
This report provides a summary of the fabrication and installation works carried out for the Middel Letaba Dam
project. The scope of work comprised the complete fabrication and installation of stainless steel and structural
steel components, including cat ladders, access platforms, and hand railings.
2. Project Scope
The turnkey project involved the following key activities:
- Fabrication of stainless-steel structural cat ladders.
- Fabrication of access platforms and hand railings.
- Supply, surface preparation, and installation of all fabricated components.
- Compliance with all relevant EN specifications and quality standards.
3. Material Specifications
Material Type: 316L Stainless Steel / S355JR+AR
Standard: EN Specifications
Fabrication Location: VIP Metals Workshop
Finish: Brushed / Polished (as per design specification) / Carbon Steel
All stainless-steel components were fabricated using 316L material, chosen for its superior corrosion resistance
and strength in harsh environmental conditions typical of dam infrastructure.
4. Fabrication Details
All fabrication works were executed at the VIP Metals workshop under controlled conditions to ensure
dimensional accuracy and compliance with design drawings. Welding and jointing processes were performed
according to EN welding standards, and all welds underwent visual inspection and quality verification.
5. Installation
The installation of the fabricated components was carried out at the Middel Letaba Dam site. This included:

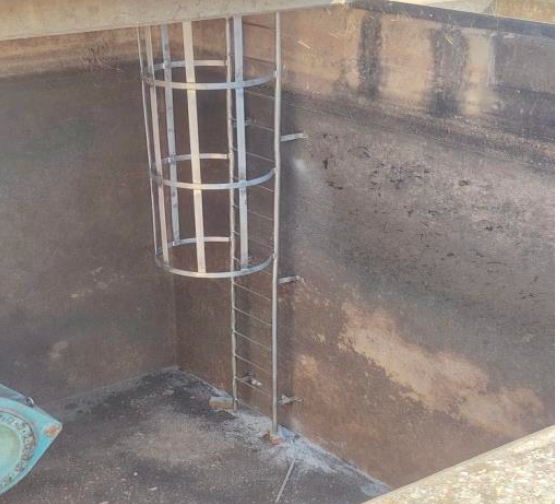

- Positioning and securing of cat ladders.
- Assembly and installation of platforms and hand railings.
- Final alignment checks and anchoring to existing structures.
All installation work adhered to approved safety procedures and site-specific risk assessments.
6. Quality Control and Compliance
All fabricated and installed items were inspected for conformity to design, material, and dimensional
requirements. The work complied with EN standards for stainless steel fabrication and installation, ensuring long-
term durability and safety.
7. Conclusion
The turnkey project at Middel Letaba Dam was successfully completed, encompassing the full fabrication and
installation of stainless-steel cat ladders, access platforms, and hand railings. All work was performed under EN
specifications using 316L stainless steel, ensuring structural integrity and longevity of the installation.

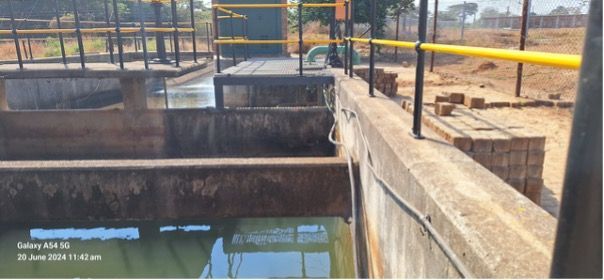

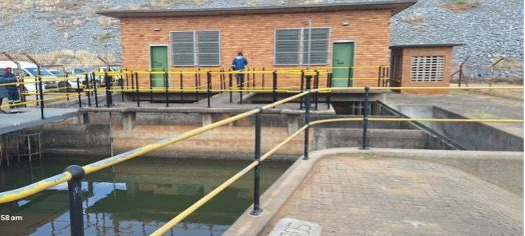

Site allocation

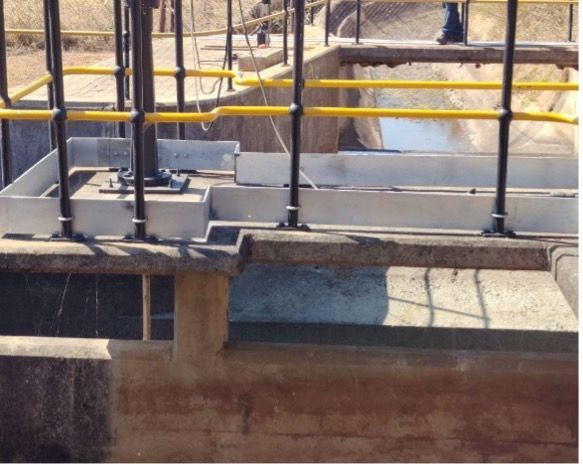

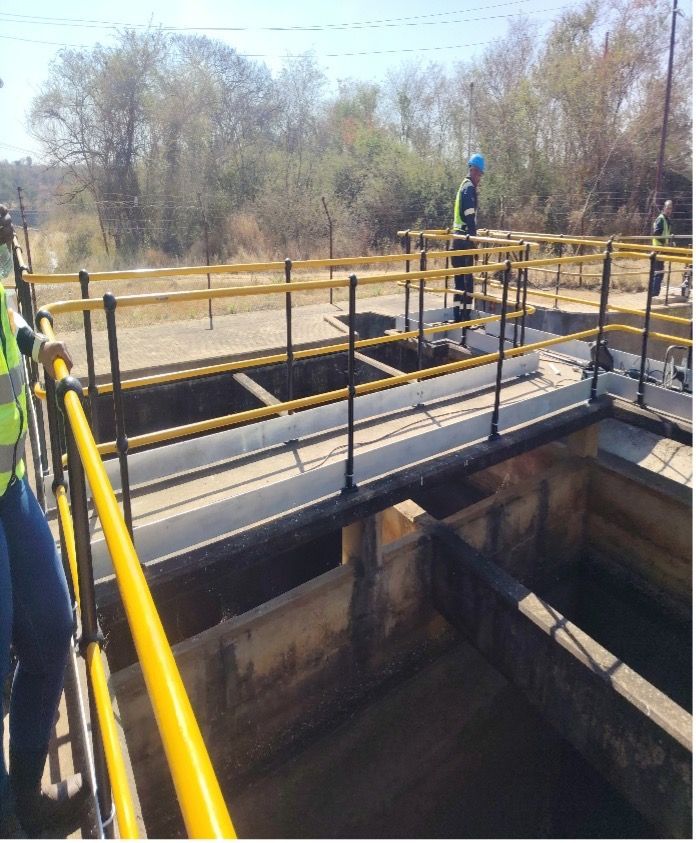

Installation of works
